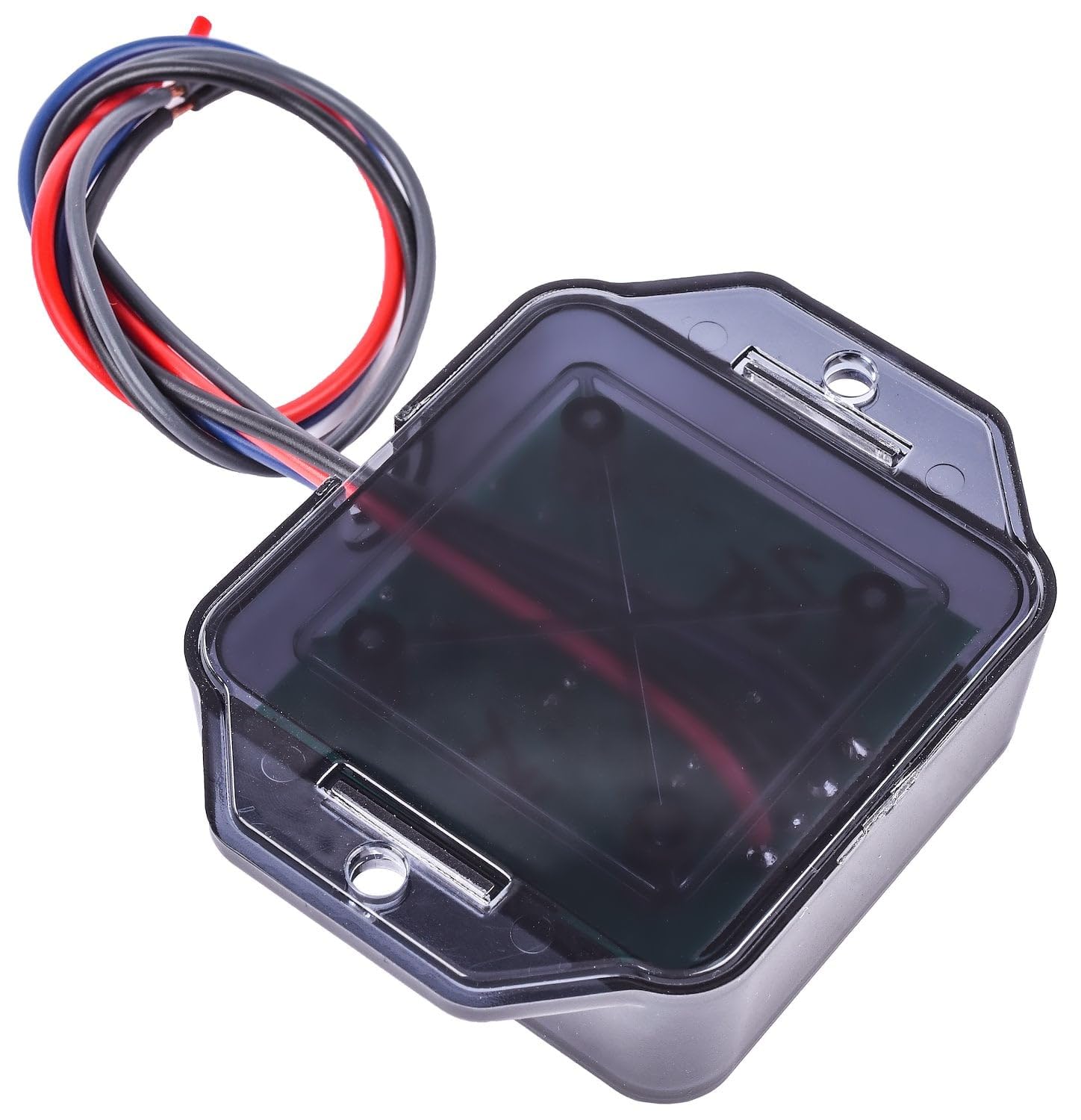

JEGS RPM-Activated Window Switch | Digital Readout | 3 Modes | Made in USA | Easy Push Button Settings | One Per Package
Product details
| Management number | 221610237 | Release Date | 2026/05/03 | List Price | US$28.39 | Model Number | 221610237 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RPM-Activated Window Switch(Replaces 555-40822)3 ModesEasy Push-Button SettingsDigital ReadoutSold Individually JEGS 40826 RPM-Activated Window Switch with Digital Readout is ideal for nitrous applications allowing you to activate nitrous at a predetermined RPM and have it shut off before it reaches peak RPM.Features:RPM Switch compatible with 1, 2, 4, 6, 8, 10 and 12-cylinder enginesEasy 4-wire hook up3 mode settings, 1L, 2L & 2LbEasy push-button settings and digital display (4 LED digits) to program the unitChoose "Open" to turn on or "Closed" to shut off accessory at desired RPMRPM Range: 2,000 to 9,900 with RPM adjustments in increments of 100 RPM at a timeCompatible with accessories up to 3 amps (relay required to control circuits over 3 amps)Short circuit protectionOvercurrent ProtectionAlso functions as a tachometer with high-RPM memory recallCase made from durable plasticCase Dimensions: 2.5 in. L x 2.5 in. W x 1 in. H (box) with 1/4 in. mounting flangesMounting: 3 in. wide hole pattern with (2) 3/16 in. I.D. holesSpecial Note: Most late model engines that don't have a distributor or have multiple coils will need a tach adapter for use with this RPM switch. We recommend MSD 121-8913
- IDEAL FOR nitrous applications allowing you to activate nitrous at a predetermined RPM and have it shut off before it reaches peak RPM
- 3 MODE SETTINGS Including 1L, 2L & 2LB
- EASY PUSH BUTTON SETTINGS and digital display to program the unit
- RPM RANGE: 2,000 to 9,900 with RPM adjustments in increments of 100 RPM at a time
- MADE IN USA with high quality components and assembly
| UPC | 889944147114 |
|---|---|
| Model | 555-40826 |
| Wattage | 36 watts |
| Terminal | Screw |
| Brand Name | JEGS |
| Unit Count | 1.0 Count |
| Item Weight | 0.35 Pounds |
| Part Number | 40826 |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | RPM-based activation and deactivation |
| Manufacturer | JEGS |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminals With Wire Leads |
| Control Method | Touch |
| Current Rating | 3 Amps |
| Operation Mode | ON-NONE-ON |
| Controller Type | Push Button |
| Item Dimensions | 4.8 x 4.4 x 4.4 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 12 Volts (DC) |
| Included Components | Per Item Description |
| Number of Positions | 3 |
| Warranty Description | 30 Days |
| Connectivity Protocol | X-10 |
| Part Interchange Info | 40826 |
